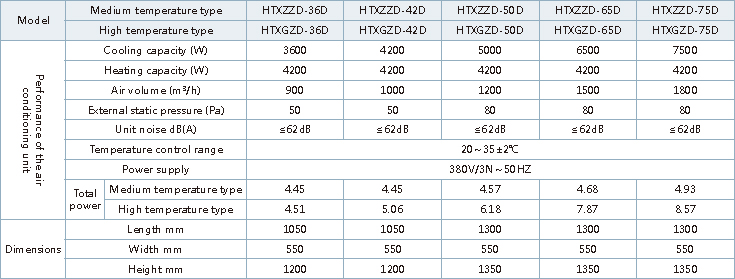

>> Parameters 1 of the D-series integrated road air conditioner:
●Cooling capacity range: 3.6-7.5KW. (Optional cold-warm type or single-cold type)
●Operating ambient temperature: ≤55℃ for the medium temperature type, ≤80℃ for the high temperature type.
●Installation mode: top flange connection in the driver cab or the electrical room
●Electrical control: local or remote.
●Application place: traveling driver cab or electrical room

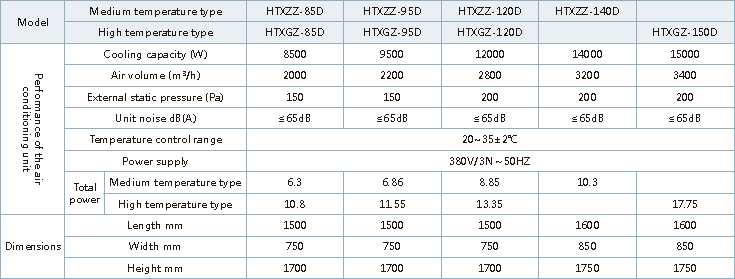

>> Parameters 2 of the D-series integrated road air conditioner:
●Cooling capacity range: 8.5-15KW. (Single-cold type)
●Operating ambient temperature: ≤55℃ for the medium temperature type, ≤80℃ for the high temperature type.
●Installation mode: top flange connection in the electrical room
●Electrical control: local or remote.
●Application place: traveling electrical room

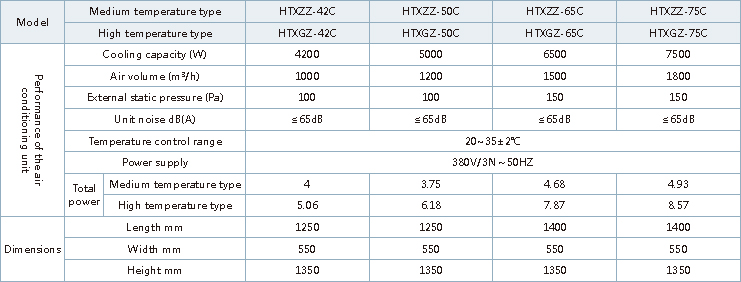

>> Parameters 1 of the C-series integrated road air conditioner
●Cooling capacity range: 4.2-7.5KW (single-cold type)
●Operating ambient temperature: ≤55℃ for the medium temperature type, ≤80℃ for the high temperature type.
●Electrical control: local or remote.
●Installation mode: side-wall flange connection in the electrical room.
●Application place: traveling electrical room

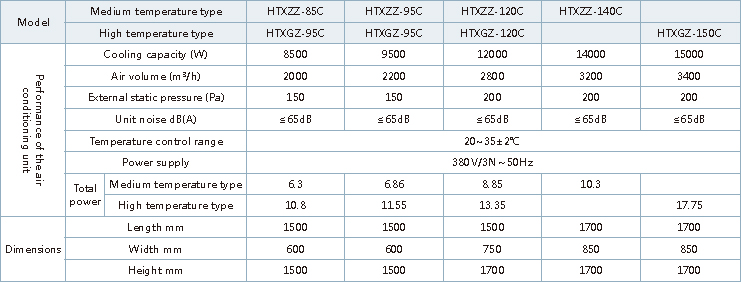

>> Parameters 2 of the C-series integrated road air conditioner
●Cooling capacity range: 8.5-15KW (single-cold type)
●Operating ambient temperature: ≤55℃ for the medium temperature type, ≤80℃ for the high temperature type.
●Electrical control: local or remote.
●Installation mode: side-wall flange connection in the electrical room.
●Application place: traveling electrical room

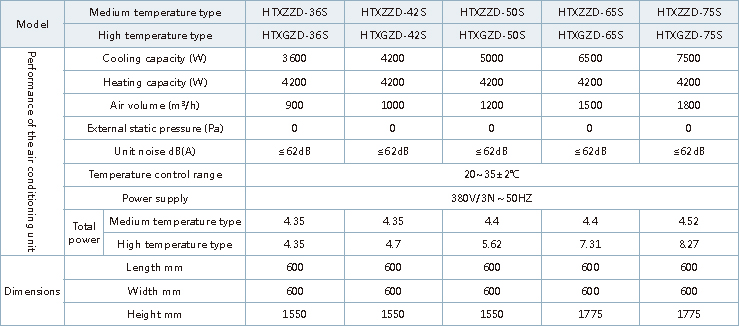

>> Parameters of the S-series integrated road air conditioner
●Cooling capacity range: 3.6-7.5KW. (Optional cold-warm type or single-cold type)
●Operating ambient temperature: ≤55℃ for the medium temperature type, ≤80℃ for the high temperature type.
●Installation mode: outer-wall opening embedded installation,
●Electrical installation: local or remote.
●Application place: traveling driver cab
